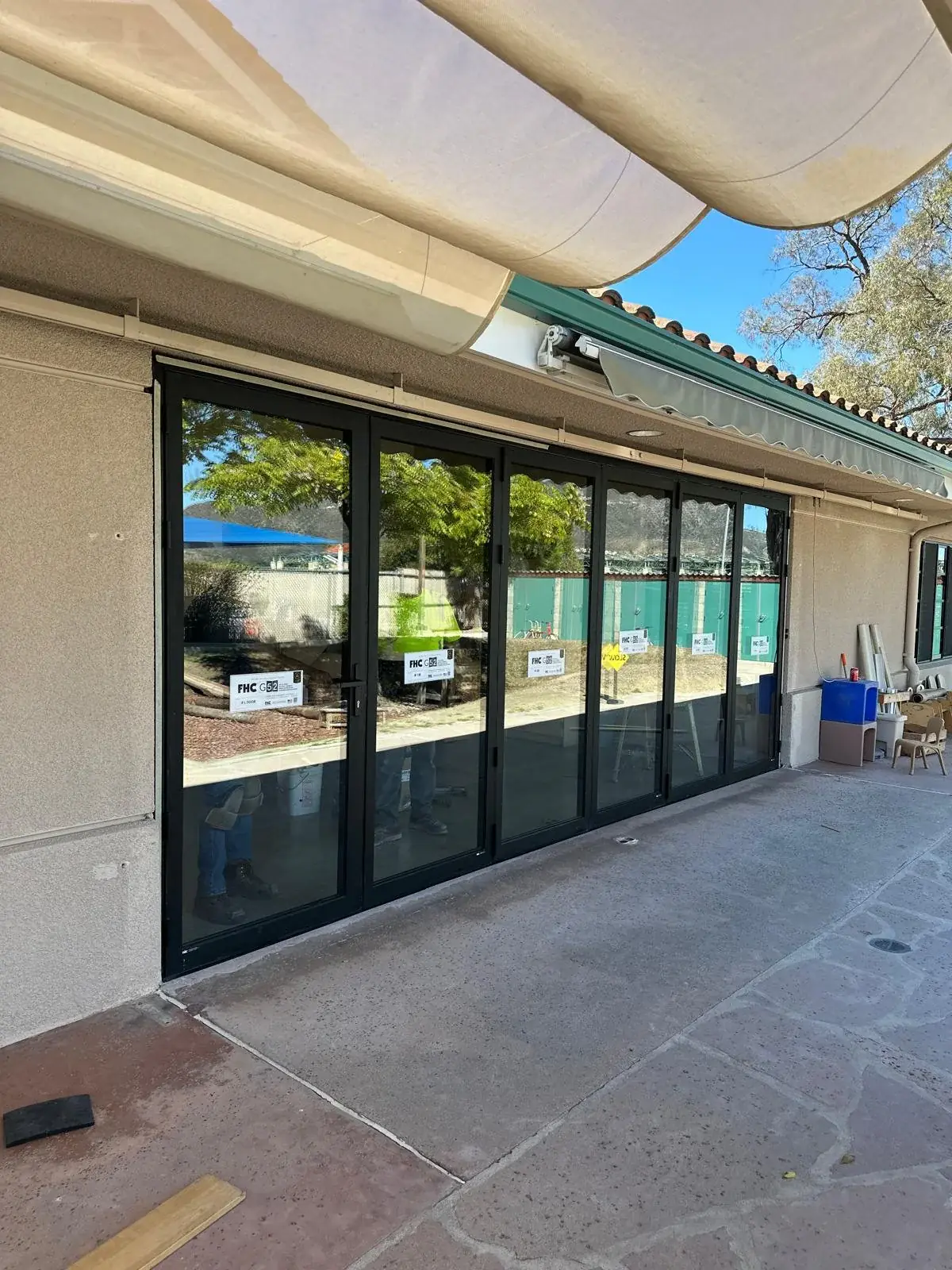

Thermally broken bi-fold system opening an entire elevation to the outdoors.
Technical scope
1 systemSpecification
Heavy-Duty Bottom Rolling Bi-Folding Glass Door
FHC G52 Series
- CW40 Performance Grade Rating (pending)
- 5-5/16" wide vertical post
- 1-7/8" high panel rails
- Comes fully glazed with 1-3/16" insulating glass by FHC
- 3-1/16" system depth
- Maximum frame height: 12 feet
- Maximum panel width: 48 inches
- Maximum connected panels: 9
- Bottom & top rolling track
- Tested 250,000 cycles
- Low profile threshold
- Reinforced mullion available when applicable
- Bottom roller with anti-derailment function for safe, smooth operation
- Inward or outward stacking available
Installed configuration
- Configuration
- 5 panels right folding with left swing door
- Stacking
- Exterior stack
- Track
- High-performance track
- Glass
- Clear
- Finish
- Dark Bronze
Available finishes
SASatin Anodized
InstalledDUDark Bronze Anodized
MBMatte Black
PTCustom Powder Paint
